Investor Cyranex Power Plant sp. z o. o.
The project involved:
- installing the base construction
- installation of PV panels
- LV cable lines (0,4 kV)
- MV cable line (20kV)
- DC wiring of PV modules
- installation of DC/AC inverters
- monitoring system of PV installation
- transformer station with the power of 1MVA 20/0,8kV
- the system of remote supervision of MV/LV stations
- commissioning and service of the plant.
Cyranex PV power plant was built on the parcel of 1,69 ha.

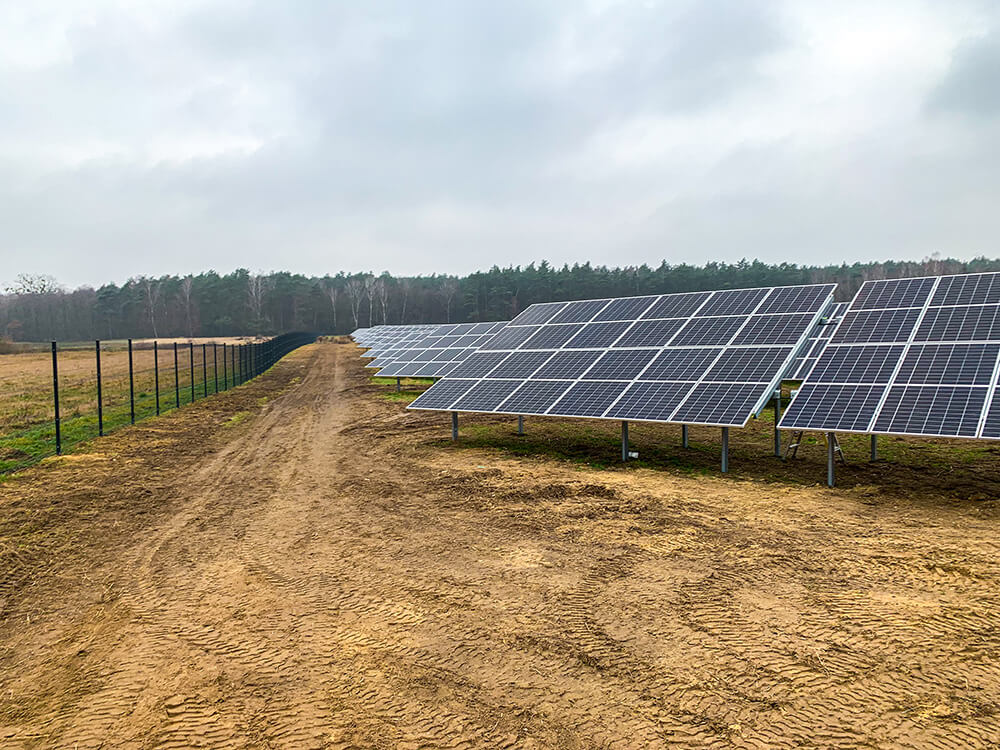

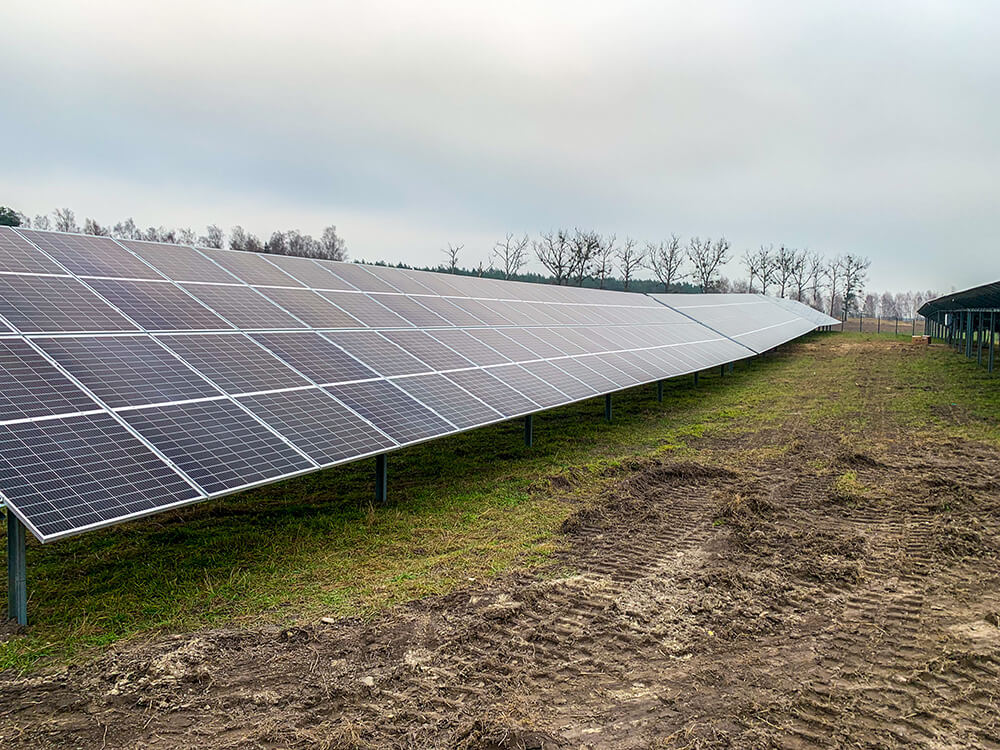

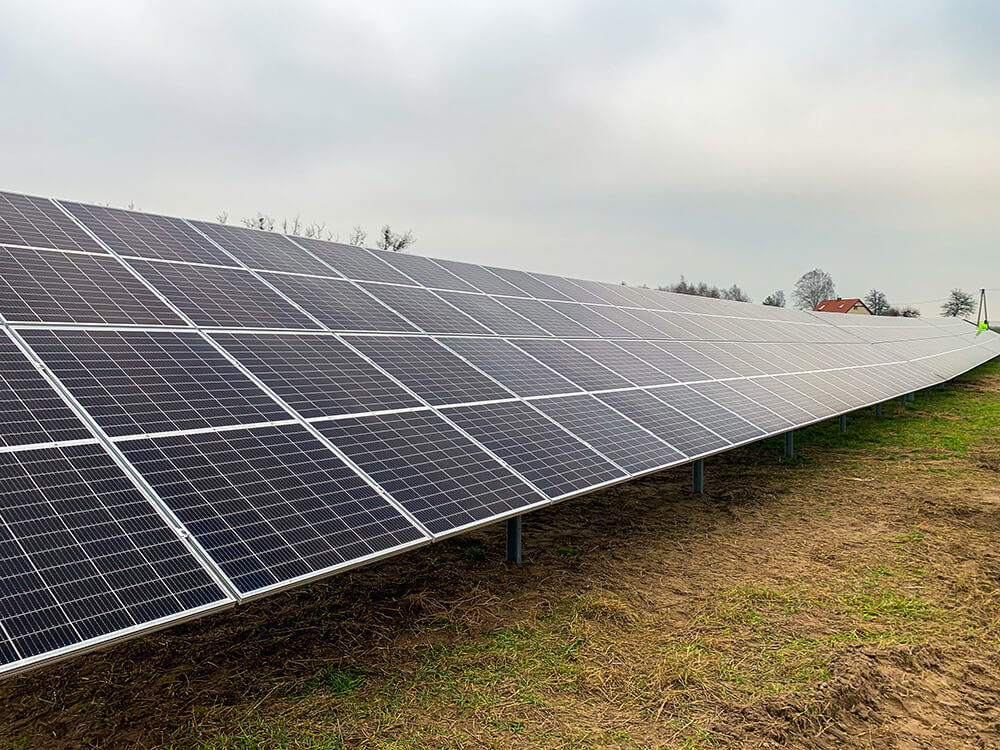

Cyranex power plant with the power of 1 MW consists of 2408 monocrystalline modules with the power of 415 Wp produced by RISEN ENERGY in bi-facial glass-glass technology. PV modules are serviced by 8 HUAWEI inverters with the power of 105 kW (SUN2000 105KTL) each. The communication and monitoring of the system by SmartLoger Huawei.

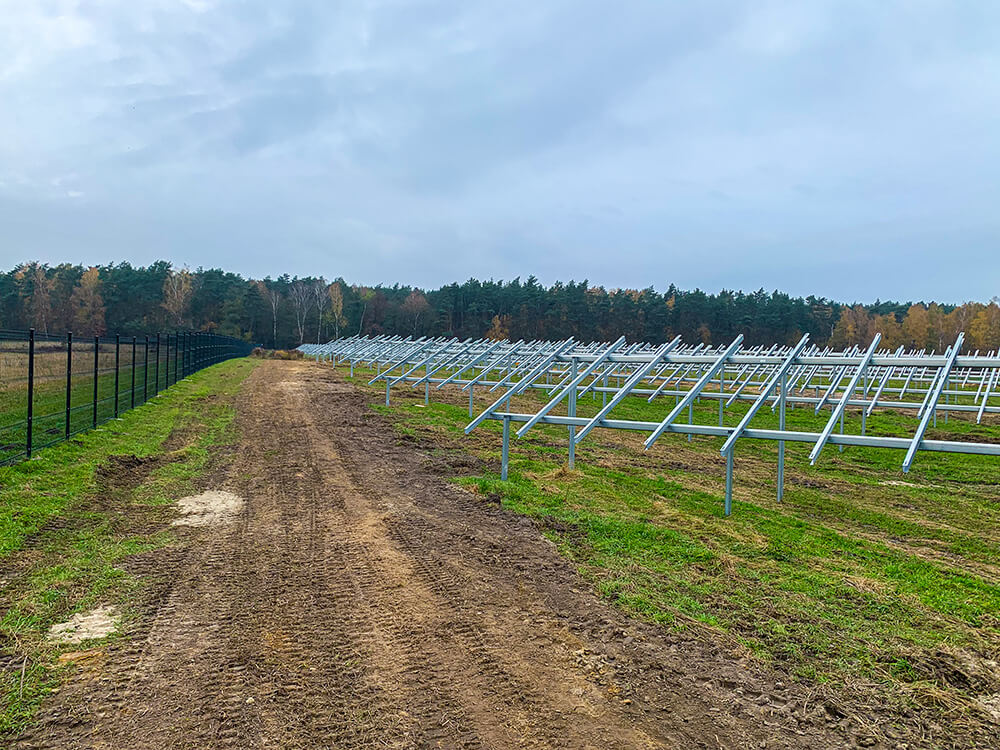

The modules were installed on the base construction produced by CORAB.

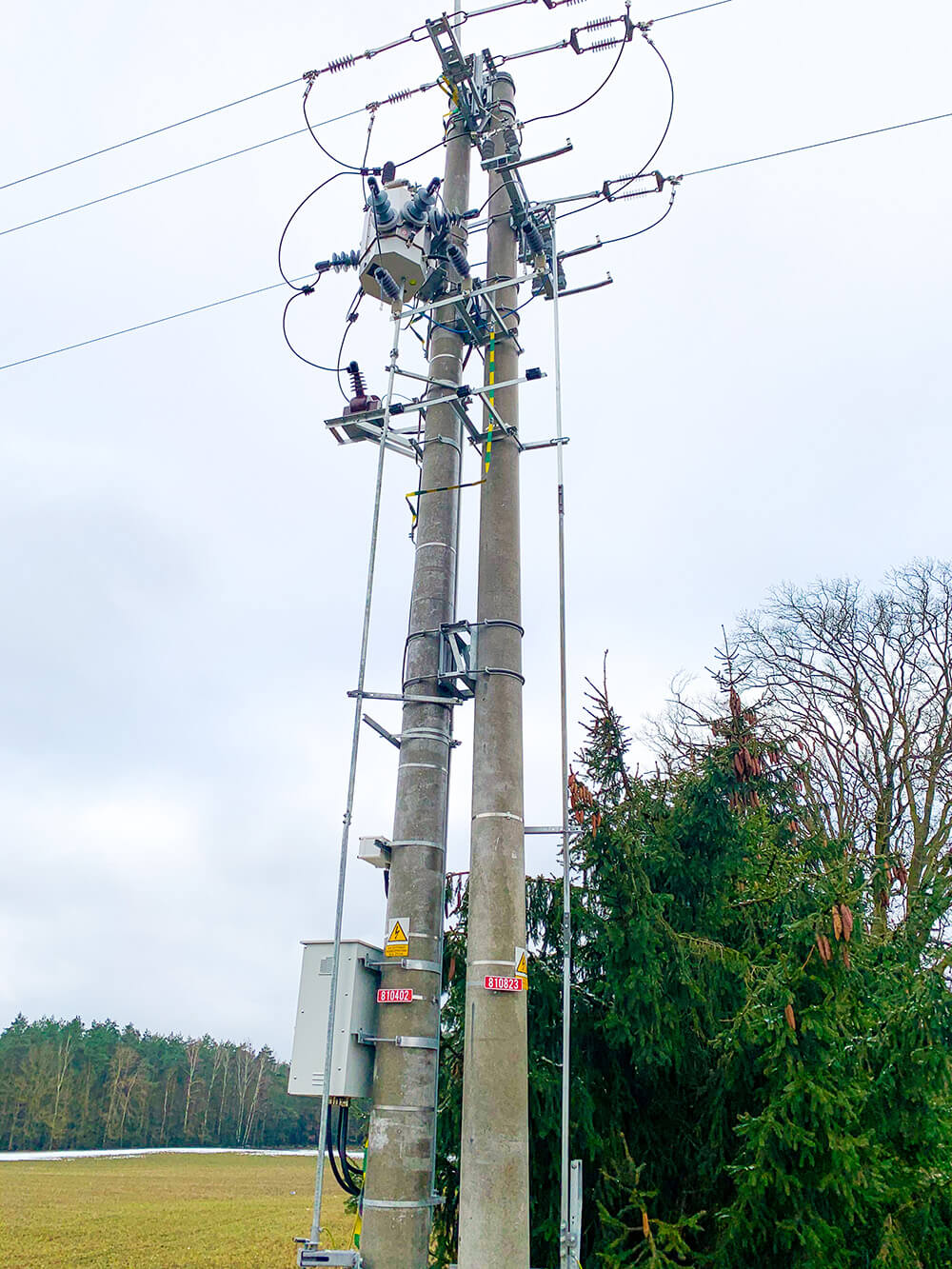

The devices of the PV plant of Cyranex Power Plant were connected to the transformer station of 20/0,8 kV. The station is connected to the distribution network with the cable line of MV 20 kV.
The measurement system of net and gross electricity produced is located in the stations with measurement data transmission to ENEA Operator system.
